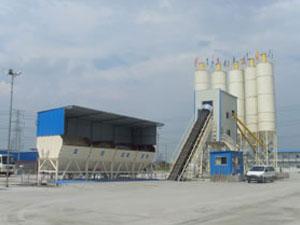

Q Series Economical Containerized Concrete Mixing Plant

Features of Q Series Economical Containerized Concrete Mixing Plant
1. With the loader to feed the material;
2. The screw conveyor is from WAM company;
3. The strap machine adopts standard section design (12m long each) to meet the transport requirements, and it is convenient to adjust the length of inclined belt conveyor;
4. With the electronic scale measurement, which is of high precision and small errors;
5. In addition to HZS60Q, the mixing console adopts the Italian BONFIGLIOLI shaft-mounted reducer;
6. HZS100Q and HZS150Q are equipped with the high quality TOLEDO sensor;
7. HZS100Q and HZS150Q use Japanese SMC solenoid valve;
8. HZS100Qand HZS150Q adopt Italian WAM butterfly valve products;
9. The main electrical components are all from Schneider Electric Company;
10. Can add a cold dryer (to be ordered separately) to ensure that the gas system reliable operation in winter;
11. Equipped with dust collector at the top of the powder silo and rain cover on the strap conveying machine to prevent dust from blowing;
12. The control system has the functions of screen displaying and drop automatically correcting, etc. It provides manual operation to control mixing procedure by manually and automatically. It also provides printing system and monitor system.

Application of Q Series Economical Containerized Concrete Mixing Plant
This important concrete equipment is popularly used in ready-mix concrete plants, which are small occupation area and small invested, as well as in the mobile construction site.

Technical Parameters of Q Series Economical Containerized Concrete Mixing Plant

Model	HZS60Q	HZS80Q	HZS100Q	HZS150Q
Theoretical productivity	60m3/h	80m3/h	100m3/h	150m3/h
Mixer	JS1000C	JS1500G	JS2000H	JS3000E
Discharge height	3.8m	3.8m	3.8m	3.8m
Aggregate weighing accuracy	±2%	±2%	±2%	±2%
Cement weighing accuracy	±1%	±1%	±1%	±1%
Fly ash weighing accuracy	±1%	±1%	±1%	±1%
Additives weighing accuracy	±1%	±1%	±1%	±1%
Water weighing accuracy	±1%	±1%	±1%	±1%
Aggregate conveying speed	230m3/h	300m3/h	400m3/h	600m3/h
Aggregate bin capacity	3×12m3	3×12m3	4×20m3	4×20m3
Cement silo	SNC100F	SNC100	SNC200	SNC200
Powder additive bin	SNC100F	SNC100	SNC200	SNC200
Cement screw conveyor	Ф219X9m	Ф219X9m	Φ273×11m	Φ323×11m
Powder additive screw conveyor	Ф219X9m	Ф219X9m	Φ219×11m	Φ273×11m
Total powder	80kW(Not include silo and screw conveyor)	105kW (Not include powder additive bin and screw conveyor )	137kW(Not include powder additive bin and screw conveyor	192kW
Automatic cycle	60s	67.5s	72S	72s
